Why ZIF Connectors Keep Failing in Production Test (And What to Use Instead)

There’s a better way to interface with FFC/FPC devices in production

If you’re testing membrane switches or flex-based assemblies, your setup probably looks something like this:

• Interface PCB
• ZIF connector
• Ribbon cable to test system

It’s a standard approach.

But it’s also where a lot of problems start.

The Real Issue Isn’t Your Product, It’s the Interface

ZIF connectors were never designed for high-cycle production testing.

They work well for development and occasional use.
They don’t hold up on a production floor.

Over time, you start seeing:

• Inconsistent contact resistance
• Intermittent opens or shorts
• Worn or broken latch mechanisms
• Operator-dependent alignment issues

At that point, debugging becomes difficult.

Is it the membrane switch?
The cable?
The test system?

Or just the connector wearing out again?

The Typical Workaround

Most teams end up doing some version of this:

• Replacing ZIF connectors regularly
• Maintaining multiple interface boards
• Adding test retries or operator checks
• Accepting some level of instability

It keeps things moving—but adds cost and uncertainty.

A Better Approach: Use an Interposer Instead of a Connector

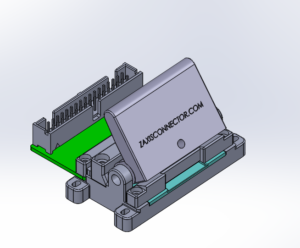

Flexible Test fixtures take a different approach.

Instead of plugging into a ZIF connector, the DUT interfaces through an elastomeric interposer system.

What that means:

• The FFC/FPC pads land directly onto the fixture
• Electrical connection is made through elastomeric contacts
• A mechanical hold-down applies consistent pressure
• The test system connects through a stable backend interface

No insertion. No latch. No connector wear.

Why This Works Better in Production

Built for High Cycle Use

Elastomeric contacts are designed for 10,000+ cycles, far beyond typical ZIF life.

Stable Electrical Performance

• Consistent contact force across all pins
• Low and repeatable contact resistance
• No degradation from latch wear

Repeatable Alignment

• Guided placement and hard stops
• Reduced operator variability
• Reliable engagement every cycle

Fewer Failure Points

• Eliminates the ZIF connector entirely
• Reduces dependence on interface PCBs
• Simplifies the signal path

Designed as a Drop-In Replacement for ZIF-Based Setups

In many cases, these fixtures act as an interposer between your DUT and existing test system.

That means you can:

• Keep your current tester
• Keep your existing pinout/interface
• Replace only the unreliable front-end connection

Where This Makes the Biggest Impact

This approach is especially effective for:

• Membrane switch testing
• FFC/FPC assemblies
• Fine-pitch or high-pin-count flex cables
• Production environments with repeated cycling

The Goal Is Simple

Make the test interface more reliable than the product being tested.

If your current setup depends on ZIF connectors, there’s a good chance your biggest source of variability isn’t your DUT—it’s the interface.

Want to See What This Looks Like in Your Application?

We design fixtures specific to your:

• Pitch and pin count
• Pads-up or pads-down orientation
• Mechanical constraints
• Test system interface

If you’re running into repeatability issues or replacing connectors too often, it’s worth taking a look at a different approach.
